Available New and Used ISO Tank Containers

General-use ISO Tank Containers store and transport chemical and oil products.

What is an ISO Tank Container?

UN portable ISO tank containers are made of stainless steel and have a uniform external appearance. The construction materials, linings, and fittings vary. Tank containers are classified according to the products carried and are commonly grouped in categories and referred to among other types as Swap Body Tanks, Bitumen Tanks, Gas Tanks, Food-Grade Tanks and more. They are available as either insulated or non-insulated with or without steam-heat capability.

The tank container is a pressure vessel mounted in a frame. Frame dimensions comply with the International Standard Organization (ISO) guidelines and are constructed following uniform international regulations for the carriage of bulk cargoes by truck, train, or ship.

ISO Tank Container Specifications

Average Tare Weight
3,750 kg, 8,267 lbs

Dimensions (L x W x H)
20 ft x 8 ft x 8 ft 6 in
6,096 × 2,438 × 2,590 cm

Average Capacity
21,000 – 26,000 L, 5,548 – 6,868 US Gallons

Average Max Gross Weight
32,250 kg, 71,099 lbs

Average Max Working Pressure
4 bar

Average Test Pressure
6 bar

Average Steam Working Pressure
4 bar

Average Relief Valve Pressure
4.4 bar

Average Maximum Cargo Temperature
+130°C

Average Ambient Temperature Range
-40°C to +65°C

Standard ISO Tank Container Sizes

Standard ISO tank container sizes are 20’ long by 8’ wide by 8’6’ high (6,096 × 2,438 × 2,590 cm). Corner castings are in each of the 8 corners, similar to standard cargo containers.

Tank containers range in size. Older tank containers are often 15,000 liters (3,962 US gallons). Current tank container sizes range from 21,000 liters (5,548 US gallons) to 26,000 liters (6,868 US gallons).

There are many variations on these themes. For example, Swap Tank containers – utilized in domestic European trade lanes – can be up to 36,000 liters. There are also specialized tanks for carriage of Bitumen and various gasses.

Types of Tank Containers

Beyond the standard ISO Tank containers, which are suitable for transporting non-hazardous liquids, other types of tank containers address more specialized industry needs. All containers sold by Quantum Tanks have a valid CSC certification and are ISO standard compliant. All tank containers are also sold with current pressure test certificates.

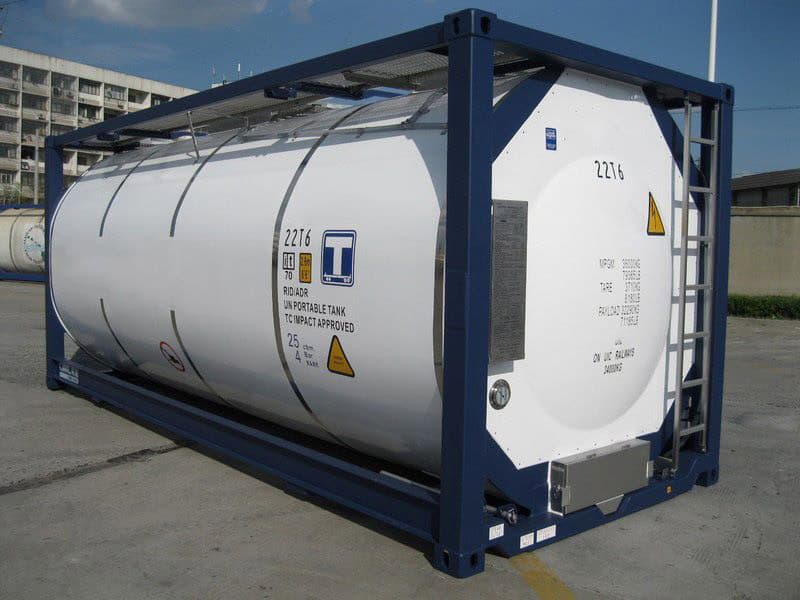

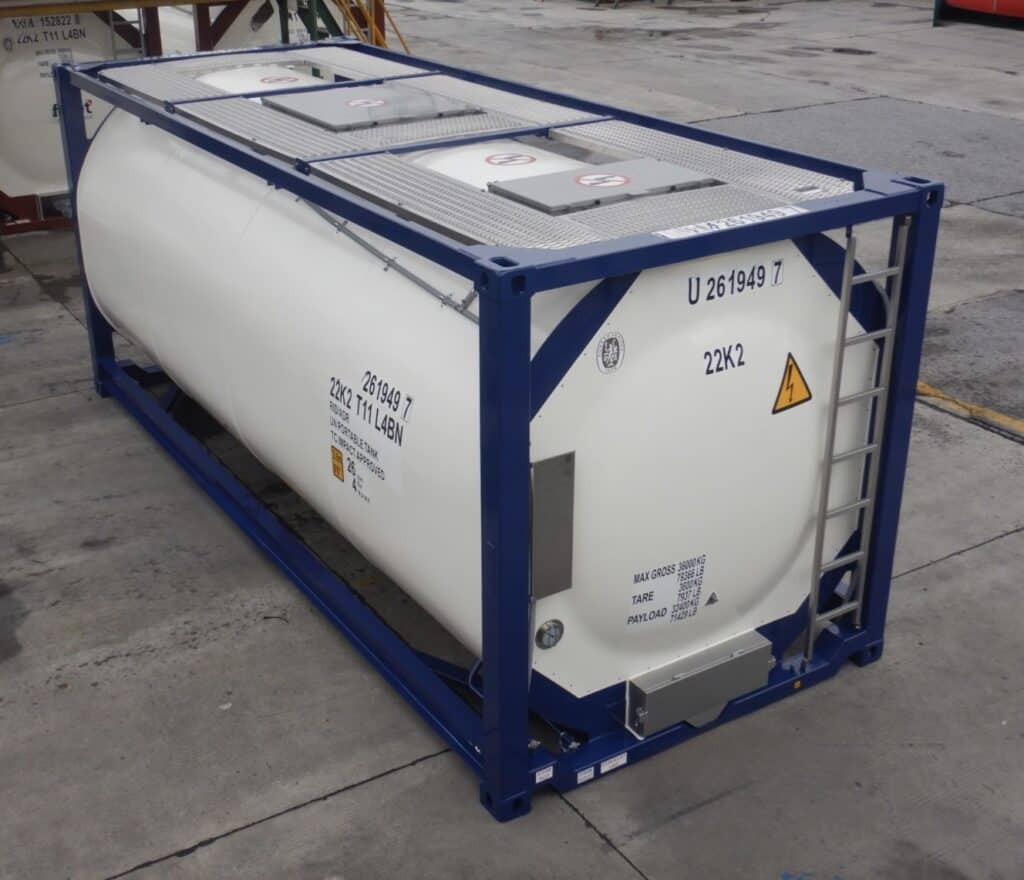

Type T11 Standard Tank Containers

The most common tank type is the T11 ISO tank container. It is versatile, available in various sizes and configurations, and can carry most liquid products for worldwide transportation or static ground storage. These tank containers are ideal for chemicals, solvents, oil, gasoline, diesel, AVGAS, and many other products that do not require high pressure or interior lining.

Gas Tank Containers

Gas tank container types T50 and T75 are built for the safe and compliant transportation of gas products such as LPG, LNG, cryogenic gases, medical oxygen, propane, butane, ammonia, and many more. They are designed to handle high pressure and often feature enhanced safety measures like pressure relief valves.

Swap Body Tank Containers

Swap Body Tank Containers offer a larger capacity than standard ISO tanks and are predominantly used for rail, road and ship transport in Europe. Their larger size often exceeds the standard ISO frame dimensions making them suitable for specific logistics needs.

Bitumen Tank Containers

Bitumen Tank Containers used to transport bitumen and other asphalt products, these tank containers feature insulation and heating systems to maintain the material’s viscosity during transport.

Food-Grade Tank Containers

Food-Grade Tank Containers are constructed from materials and coatings that comply with food safety standards. They are used exclusively for transporting liquids like potable water, milk, wine, edible oils, and juices.

Factors to Consider When Buying ISO Tank Containers

1. Capacity Requirements

Determine the volume you need – typically ranging from 21,000 to 26,000 liters. Some used tank containers can be as little as 15,000 liters.

2. New versus Used ISO Tank Container

Decide whether a new, used or refurbished tank fits your budget, operational, and timeline needs.

3. Material and Coatings

Work with an expert like Quantum Tanks to ensure your new or used ISO tank container purchase fits your business needs. For example, you’ll need linings for corrosive materials and acids.

4. Insulation and Heating Options

Many tanks have built-in heating systems, such as steam heating coils or electric heaters.

5. Compliance

Verify that the tank meets safety and environmental regulations. At Quantum Tanks, we sell used tank containers in full-pressure tested and certified condition.

Key Features of ISO Tank Containers

Standardized Dimensions: ISO compliance ensures compatibility with global transport systems.
Durability: Constructed with high-grade stainless steel and often insulated for temperature control.
Safety Features: Equipped with pressure relief valves, manholes, and safety venting systems.
Versatility: Suitable for chemicals, food-grade products, gases, and more.

UN portable ISO tank containers have uniform external appearances, and the construction materials, linings, and fittings vary. Tank containers are classified according to the products carried and are commonly grouped into categories, referred to as CHEMICAL, FOOD-GRADE, GAS, and BITUMEN tanks. SWAB BODY tanks are exclusively used on the European continent, and they have larger capacities. The tank container is a pressure vessel mounted in a frame. Frame dimensions comply with the International Standard Organization (ISO) guidelines and are constructed following uniform international regulations for the carriage of bulk cargoes by truck, train, or ship.

Benefits of Using ISO Tank Containers

Cost-Effective

Eco-Friendly

Safe and Reliable

Global Accessibility

Tank Container Sizes

Standard exterior frame dimensions on all ISO tank containers are 6,096 × 2,438 × 2,590 cm. The Swap Body tanks have different dimensions. Corner castings are in each of the 8 corners, similar to standard cargo containers. Tank containers range in size from 20,000 (5283 US gallons) to 26,000 liters (6868 US gallons) and are available as insulated or non-insulated units, with or without steam-heat capability. There are many variations on these themes, such as the Swap Tank container, which is mainly utilized in domestic European trade lanes in sizes up to 35,000 liters, and special tanks for the carriage of Bitumen.

The most common frame type available is BEAM TANK. The end frame utilizes the inherent strength of the tank cylinder as a beam. FRAME TANK – The full frame supports the cylinder within a steel frame.

New Tank Containers

Investing in a new ISO tank container can be a strategic decision for businesses seeking reliability, long-term performance, and customization. New containers provide unique advantages, particularly for specialized or high-stakes operations.

Quantum Tanks sells new ISO tank containers – any quantity ex-factory. All tank containers are built to order. We supply new tank containers from several factories in China, Europe, and other countries that manufacture particular tank types. Repositioning of the new tank containers to all locations worldwide is offered as an additional service. All new tank containers are inspected and certified by ABS, BV, or Lloyd’s Register and meet all international standards for pressure vessels. Smaller quantities of new tank containers are frequently available at various port locations worldwide.

Why Buy New ISO Tank Containers?

1. Guaranteed Quality and Compliance

New ISO tank containers are manufactured to the latest industry standards and meet the strict requirements of the International Organization for Standardization (ISO). This ensures:

Optimal Safety: Tanks are free from wear, corrosion, or other age-related issues.
Regulatory Compliance: Meets updated global safety and environmental regulations, reducing the risk of legal or logistical issues.
Enhanced Durability: New tanks are made with state-of-the-art materials and techniques for maximum longevity.

2. Tailored to Your Needs

When purchasing a new tank container, you have the option to customize it to your exact business needs, including:

Tank Size and Capacity: Choose the capacity that best fits your operational needs.
Insulation and Heating Systems: Essential for temperature-sensitive cargo.
Special Coatings: Internal linings for specific chemicals or food-grade products.
Additional Safety Features: Extra valves, pressure relief systems, or monitoring devices.

3. Advanced Technology and Features

New tanks often come with the latest technological advancements, such as:

These features improve operational efficiency, cargo safety, and overall cost savings over the container’s lifetime.

4. Long-term Peace of Mind and Warranty

New ISO tanks come with manufacturer warranties, offering reassurance about their long-term quality and performance due to:

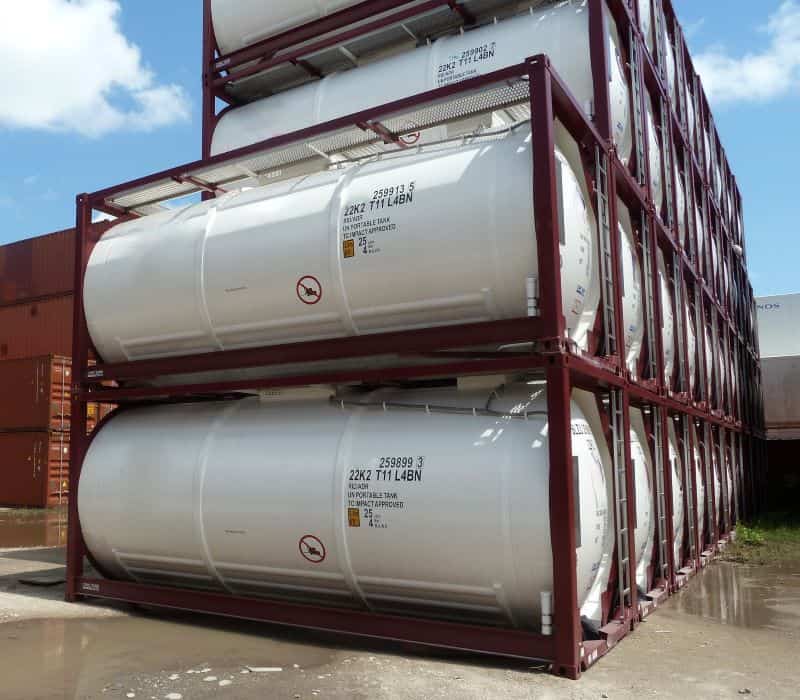

Used Tank Containers

Used ISO tank containers are pre-owned containers that still meet industry standards for safety and functionality. Businesses often choose used containers as a budget-friendly option for transporting bulk liquids, gases, and powders while maintaining the reliability and efficiency associated with ISO-compliant tanks.

As part of our quality pre-sale processes, we ensure that our used tank containers undergo a thorough inspection program and that all potential problem areas are addressed before the tank containers are tested and released. All tank containers are cleaned before exiting our facilities. We sell used tank containers in full-pressure tested and certified condition. We paint the tank cylinders and frames, if required, and install new prefixes, container unit numbers, and logos according to the customer’s requirements.

Why Buy Used ISO Tank Containers?

Cost Savings

Used tanks often cost 30-50% less than new units, providing a more affordable solution without sacrificing quality.

Reliable Quality

Our used containers undergo inspections, refurbishments, and pressure tests to ensure quality.

Sustainability

Choosing used containers extends their lifecycle, reducing waste and the environmental impact of manufacturing new tanks.

Availability

Used containers are often readily available, which can be crucial for businesses needing quick solutions.

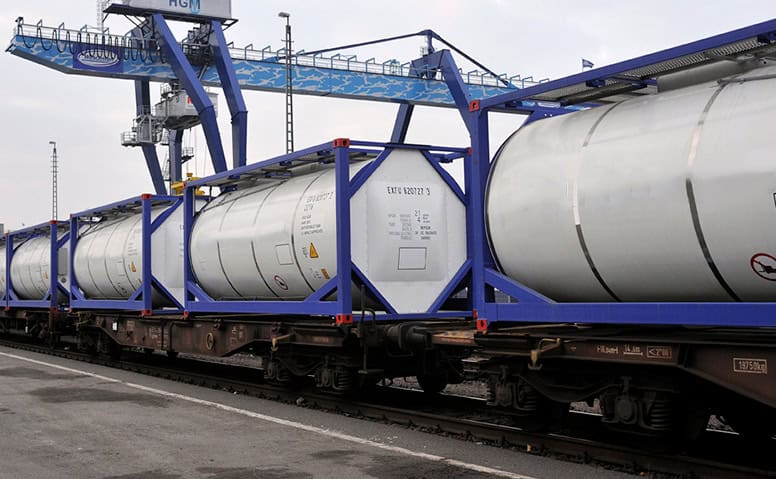

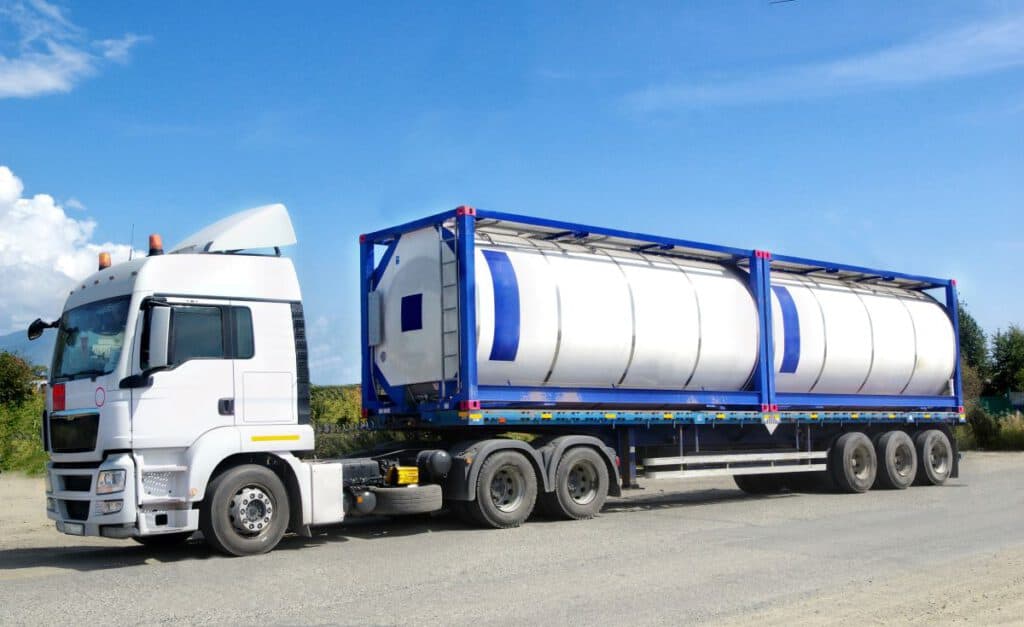

Tank Container Logistics & Transportation

We offer door-to-door inland and ocean transportation in connection with the tank container sale. Complete turnkey point-to-point logistics solutions are provided at most global locations: door-to-door, Port-to-Port, Ex-tank container yards, ex-works.
